Micro Ball Lenses
 Because
of its all round surface, AC
Photonics’ Micro
Ball Lens has flexible optical performance of a typical symmetrical
convex lens in an micro optical environment, suitable for compact-size
fiberoptical components, laser systems, and micro optical devices. The
sides of the ball lens can be polished off for easier handling mounting.
Features |
|
Applications |
- All Round Surface
- BI-CX Optical Performance
- High Transmittance or Reflectance
- Low Reflectance
- Flexible Wavelength Mainipulation
|
|
- Compact Fiberoptical Components
- Laser Systems
- Micro Optical Devices
- Optical Assemblies
|
Specifications
| Material |
Optical glass |
| Design wavelength |
Visible or as specified |

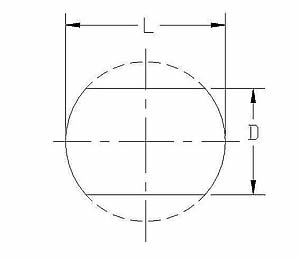

| Length |
1.0 ~ 8.0 mm or as specified |
| Diameter (D) |
0.7 ~ 8.0 mm or as specified |
| Focal Length |
±2% |
| Centration |
±3 arc minutes |
| Clear Aperture: |
80% of the edge diameter |
| Scratch and Dig: |
60-40, 40-20, 20-10, or as specified |
| Circumference |
Polished or fine grind on the sides |
Spectral Chart
|
