Micro
Drum Lens
AC Photonics'
Featuring
a cylindrical shape, Micro Drum Lens is easier to handle than a typical
ball lens, but still has the exxcellent optical performance of a typical
ball lens in an micro optical environmen, suitable for compact-size
fiberoptical components, laser systems, and micro optical devices. The
tip of the curvature can be polished flat for special collimation needs.
Features |
 |
Applications |
-
Cylindrical Sides with Convex curvatures
- Typical
Ball lens Performance
- High
Transmittance
- Low
Reflectance
- Accurate
Wavelength manipulation
|
|
- Compact
Fiberoptical Components
- Laser
Systems
- Micro
Optical Devices
- Optical
Assemblies
|
| |
|
|
Specifications
| Material: |
Optical glass |
| Design wavelength: |
Visible or as specified |

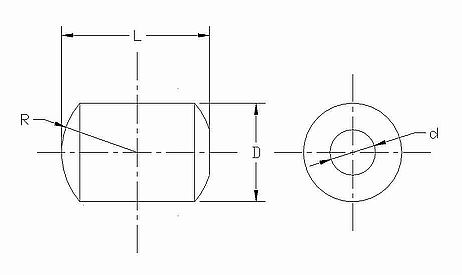

| Length |
1.0 ~ 8.0 mm or as specified |
| Diameter (D) |
0.7 ~ 8.0 mm or as specified |
| Flat top diameter (d) |
0.3 ~ 1.0 mm or as specified |
| Focal length |
± 2% |
| Centration |
± 3 arc minutes |
| Clear aperture: |
80% of the diameter |
| Scratch and dig: |
60-40, 40-20, up to 10-5 upon request |
| Circumference |
Polished or Fine grind |
| AR Coating |
MgF2, visible wavelength, or as specified |
| Customeized Specs |
Available upon request as per drawing |
Spectral Chart
|
