1480/1550 nm WDM/Tap Coupler/Isolator Hybrid Combination

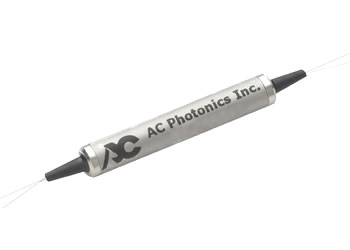

AC Photonics' WTIH is a combination of a wavelength division multiplexer, tap coupler and an isolator in a compact package. This product has an extremely low insertion loss, a very stable tap-coupling ratio, high isolation, and high return loss. The WTIH is ideal for fiber optic amplifier applications. All AC Photonics' products are Telcordia qualification tested.





Features

Applications
  • Wide Operating Wavelength Range
  • Compact Size
  • Low Insertion Loss
  • High Channel Isolation
  • Ultra Low PDL & PMD
  • High Stability and Reliability
  • Epoxy Free Optical Path

  • Fiberoptic Amplifiers
  • CATV Fiberoptic Links
  • WDM Systems
  • Fiberoptic Instruments
  • Transmitters and Fiber Lasers
  • Laboratory R&D





Performance Specifications

Parameter

Single Stage

Dual Stage

Signal Operation Wavelength Range (nm)

C Band

1530~1565

L Band

1570~1605

Pump Channel Wavelength Range (nm)

1450~1490

Isolation (dB) ( 23°C, all SOP)

>31

>45

Isolation (dB) (2 to 4 @ l signal)

>12

Isolation (dB) (1 to 2 @ l pump)

>30

Insertion Loss (over wavelength range and 0 ~ +70°C, all SOP) (dB)

Pump Channel

<0.6

Signal Channel

<1.1

<1.3

Nominal Tap Ratio 1%

19.0~20.8
Nominal Tap Ratio 2%
16.2~18.0

Nominal Tap Ratio 5%

12.2~14.0

WDL (Max.) (dB)

<0.5

Return Loss (dB)

>50

Directivity (dB)

>55

PDL (dB)

<0.1

PMD (ps) (Low PMD Option)

<0.25 (0.05)

<0.05

Power Handling (mW)

300

Operating Temperature (°C)

0 ~ +70

Storage Temperature (°C)

-40 ~ +85

Package Dimension (mm)

F 5.5 x L38

Fiber Type

Corning SMF-28 fiber

Values are referenced without connector loss: Specifications may change without notice.



Ordering Information

WTIH

Wavelength

Stage

Tap Ratio

Pigtail Style

Fiber Length

In/Out Connector

54=1550/1480nm
64=1585/1480nm

S=Single Stage
U=Dual Stage

1=1%
2=2%
5=5%
1=Bare Fiber
2=900um Jacket

1=1m
2=2m

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC
